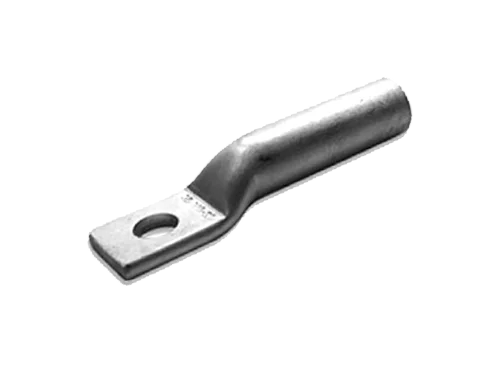

Aluminium XLPE Tubular Lugs

Compression Type, Aluminum Terminal ends, for crimping to XLPE Conductors

Material: ETP-Copper

Surface: Tin Plated

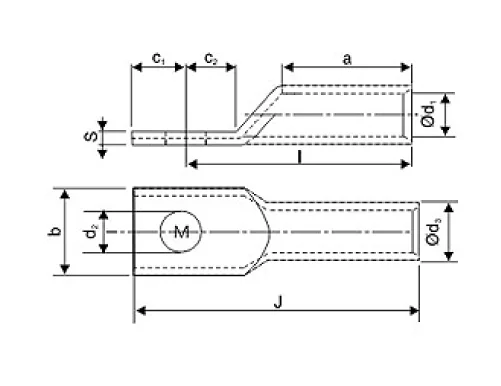

Technique Data
Conductor Bolt Ø CAT No. C1 C2 I J S PKG
16 M 6 3D-4000 9 12 57 66 1.8 400
25 M 8 3D-4001 9 12 57 66 2.4 200
35 M 8 3D-4002 11 11 65 76 2.8 150
50 M 10 3D-4003 11 13 67 78 3.4 100
70 M 10 3D-4004 13 13 80 93 4.3 80
95 M 12 3D-4005 14 14 93 107 4.9 50
120 M 12 3D-4006 15 15 96 111 5.3 50
150 M 12 3D-4007 17 17 108 125 6 50
M 16 3D-4008 17 17 108 125 6 25
185 M 12 3D-4009 18 18 110 128 7.3 20
M 16 3D-4010 18 18 110 128 7.3 20
240 M 12 3D-4012 22 22 119 141 7.9 15
M 16 3D-4013 22 22 119 141 7.9 15
300 M 12 3D-4015 27 27 127 154 8.4 15
M 16 3D-4016 27 27 127 154 8.4 15
M 20 3D-4014 27 27 127 154 8.4 40
400 M 20 3D-4017 30 30 154 184 9.8 40
500 M 20 3D-4018 32 32 170 202 10.9 25
630 BLK 3D-4019 34 34 188 222 12.7 20
800 BLK 3D-4020 39 39 208 247 13.8 15
1000 BLK 3D-4021 45 45 232 277 15 10
