Aluminium Lugs IS 8309 Tubular Lugs

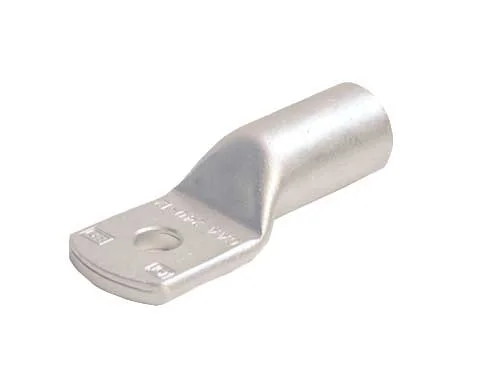

Aluminum tubular Terminal ends, for crimping to Aluminum Conductors (As per IS-8309)

Material: Aluminum

Surface: Natural

Technique Data

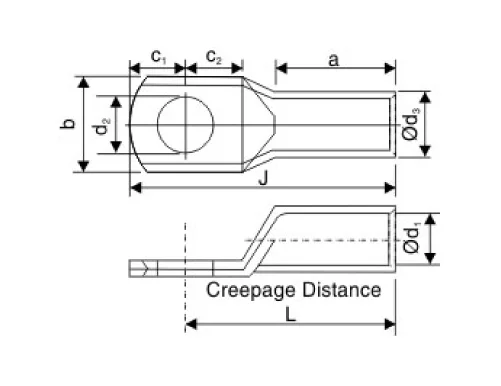

Conductor Bolt Ø CAT No. C1 C2 I J PKG
2.5 M 3 3D-2535 4 4 14 18 2000
4 M 4 3D-2536 4 4 14 18 2000
M 5 3D-2537 5 5 16 21 2000
6 M 6 3D-2538 6 6 17 23 1600
10 M 6 3D-2539 8 9 22 30 1000
M 8 3D-2540 8 9 22 30 800
16 M 6 3D-2541 9 11 28 37 600
M 8 3D-2542 9 11 28 37 600
M 10 3D-2543 9 11 29 38 400
25 M 6 3D-2544 10 11 34 44 400
M 8 3D-2545 10 11 34 44 400
M 10 3D-2546 10 11 34 44 400
M 12 3D-2547 12 12 35 47 300
35 M 6 3D-2548 11 11 35 46 300
M 8 3D-2549 11 11 35 46 300
M 10 3D-2550 11 11 35 46 300
50 M 8 3D-2551 11 13 43 54 200
M 10 3D-2552 11 13 43 54 200
M 12 3D-2553 12 13 42 54 200
70 M 8 3D-2554 13 13 47 60 100
M 10 3D-2555 13 13 47 60 100
M 12 3D-2556 13 13 47 60 100
95 M 10 3D-2557 14 14 50 64 80
M 12 3D-2558 14 14 50 64 80
M 16 3D-2559 15 15 51 66 80
120 M 10 3D-2560 15 15 58 73 50
M 12 3D-2561 15 15 58 73 50
M 16 3D-2562 15 15 58 73 50
150 M 10 3D-2563 17 17 62 79 40
M 12 3D-2564 17 17 62 79 40
M 16 3D-2565 17 17 62 79 40
185 M 10 3D-2566 18 18 66 84 40
M 12 3D-2567 18 18 66 84 40
M 16 3D-2568 18 18 66 84 40
240 M 12 3D-2569 22 22 80 102 30
M 16 3D-2570 22 22 80 102 30
300 M 16 3D-2571 27 27 88 115 20
M 20 3D-2572 27 27 88 115 20
400 M 20 3D-2573 30 31 100 130 15
500 M 20 3D-2574 32 33 108 140 10
630 M 20 3D-2575 34 35 120 154 5
800 BLK 3D-2576 39 39 141 180 20
1000 BLK 3D-2577 45 45 175 220 20
