Compression Joints For Non Tension Connection

For non tension connection

Material : Electrolytic copper

Surface: Electro Tin Plated

Technique Data

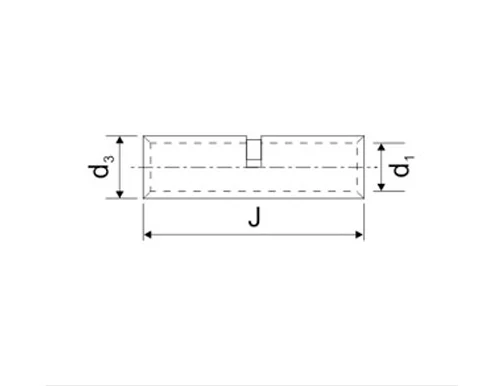

Conductor CAT No. d1 d3 J Pcs
1.5 3D-2849 1.6 3.2 15 100
2.5 3D-2850 2.4 4.0 15 100
6 3D-2851 3.5 5.5 15 100
10 3D-2852 4.5 6.2 20 100
16 3D-2853 5.4 7.1 20 100
25 3D-2854 6.8 8.8 32 100
35 3D-2855 8.2 10.6 36 50
50 3D-2856 10 12.8 40 50
70 3D-2857 11.2 14.7 40 50
95 3D-2858 13.5 17.4 45 25
120 3D-2859 15.0 19.4 45 20
150 3D-2860 16.5 21.2 55 15
185 3D-2861 18.5 23.5 65 10
240 3D-2862 21.0 26.5 80 10
300 3D-2863 23.5 30.0 85 5
400 3D-2864 26.8 34.8 90 5
500 3D-2865 30.0 39.0 100 4
630 3D-2866 35.0 45.0 110 2
800 3D-2867 39.0 50.6 150 10
1000 3D-2868 43.0 56.2 170 10
