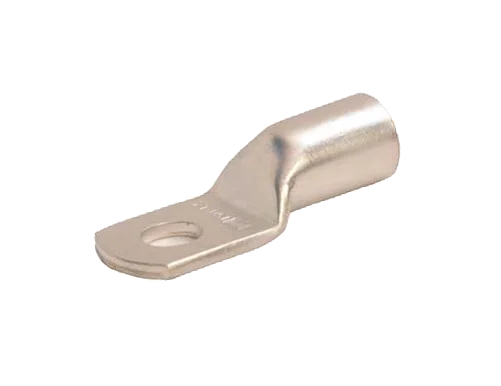

Light duty Tubular Lugs

Standard Type, without inspection hole for copper conductors. (Economy Series).

Material: ETP-Copper

Surface: Tin Plated

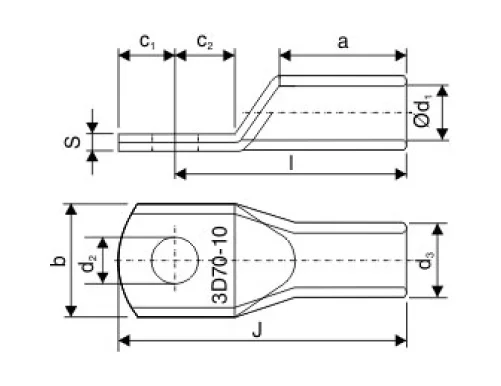

Technique Data
Conductor Bolt Ø CAT No. C1 C2 I J S PKG
2.5 M 5 3D-2501 5 5 15 20 1 100
4 M 6 3D-2502 6 6 16 22 1 100
6 M 6 3D-2503 6 6 18 24 1 100
10 M 6 3D-2504 6 6 18 24 1.3 100
16 M 6 3D-2505 6 8 24 30 1.6 50
25 M 6 3D-2506 8 12 29 37 2 50
35 M 6 3D-2507 8 12 29 37 2 50
M 8 3D-2508 8 12 29 37 2 50
50 M 6 3D-2509 9 12 36 45 2 50
M 8 3D-2510 9 12 36 45 2 50
M 10 3D-2511 9 12 36 45 2 50
70 M 8 3D-2512 13 15 43 56 2.3 25
M 10 3D-2513 13 15 43 56 2.3 25
M 12 3D-2514 13 15 43 56 2.3 25
95 M 10 3D-2515 13 15 45 58 2.8 25
M 12 3D-2516 13 15 45 58 2.8 25
120 M 10 3D-2517 14 16 48 62 3 25
M 12 3D-2518 14 16 48 62 3 25
M 16 3D-2519 14 16 48 62 3 25
150 M 10 3D-2520 15 18 55 70 3.6 25
M 12 3D-2521 15 18 55 70 3.6 25
M 16 3D-2522 15 18 55 70 3.6 25
185 M 12 3D-2523 21 21 62 83 4 20
M 16 3D-2524 21 21 62 83 4 20
240 M 16 3D-2525 24 24 73 97 4 10
M 20 3D-2526 24 24 73 97 4 10
300 M 16 3D-2527 25 25 78 103 4.7 5
M 20 3D-2528 25 25 78 103 4.7 5
400 M 20 3D-2529 27 27 89 116 5.2 5
500 M 20 3D-2530 27 27 95 122 6 5
630 M 20 3D-2531 31 33 106 137 6.5 5
800 BLK 3D-2532 75 - - 165 7.3 10
1000 BLK 3D-2533 90 - - 210 10.8 10
