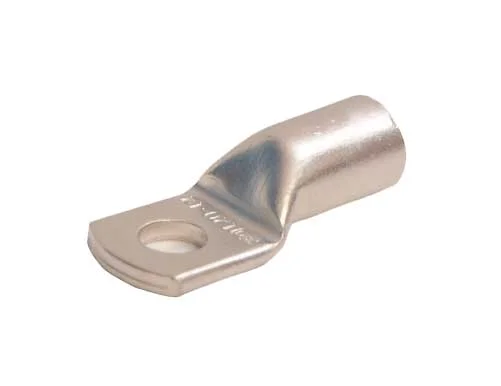

New Type Heavy Duty Tubular Lugs

Standard Type, without inspection hole for copper conductors.

Material: ETP-Copper

Surface: Tin Plated

Technique Data

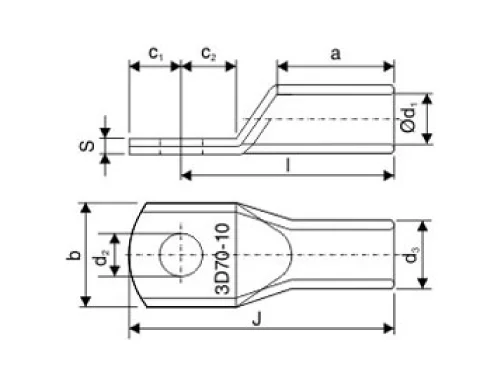

Conductor Bolt Ø CAT No. C1 C2 I J S PKG
6 M 5 3D-2149 6.5 7.5 21 27.5 2.3 100
M 6 3D-2150 6.5 7.5 21 27.5 1.9 100
M 8 3D-2110 10 10 23 33 1.5 100
M 10 3D-2158 12 12 25 37 1.4 100
M 12 3D-2159 13 13 28 41 1.2 100
10 M 5 3D-2041 6.5 7.5 22 28.5 1.8 100
M 6 3D-2183 6.5 7.5 22 28.5 1.8 100
M 8 3D-2184 10 10 25 35 1.5 100
M 10 3D-2160 12 12 27 39 1.3 100
M12 3D-2161 13 13 29 42 1.2 100
16 M 5 3D-2185 5.5 6.5 26 31.5 2.7 100
M 6 3D-2186 6.25 7.5 27 33.25 2.7 100
M 8 3D-2187 8.5 9.5 29 37.5 2.2 100
M 10 3D-2162 10.5 11.5 31 41.5 1.9 100
M 12 3D-2163 12 13 33 45 1.7 100
25 M 5 3D-2165 7.5 7.5 30 37.5 2.8 25
M 6 3D-2189 7.5 7.5 30 37.5 2.8 100
M 8 3D-2190 10 10 32 42 2.5 100
M 10 3D-2191 12 12 34 46 2.2 100
M 12 3D-2166 13 13 35 48 2.1 25
M 14 3D-2167 14.5 14.5 38 52.5 1.9 25
35 M 6 3D-2192 7.5 7.5 32 39.5 3.3 100
M 8 3D-2193 10 10 34 44 3.3 100
M 10 3D-2014 12 12 37 49 2.9 100
M 12 3D-2168 13 13 38 51 2.6 100
M 14 3D-2169 14.5 14.5 40 54.5 2.6 25
M 16 3D-2006 16 16 42 58 2.1 25
50 M 6 3D-2001 10 10 37 47 3.7 25
M 8 3D-2003 10 10 37 47 3.7 50
M 10 3D-2004 12 12 39 51 3.7 50
M 12 3D-2170 13 13 43 56 3.2 50
M 14 3D-2171 14.5 14.5 45 59.5 3.2 25
M 16 3D-2007 16 16 46 62 2.7 25
M 20 3D-2008 19 19 48 67 2.5 25
70 M 6 3D-2005 10 10 43 53 4.3 25
M 8 3D-2121 10 10 43 53 4.3 50
M 10 3D-2164 12 12 44 56 4.3 50
M 12 3D-2188 13 13 46 59 4.3 50
M 14 3D-2172 14.5 14.5 48 62.5 4.3 25
M 16 3D-2173 16 16 50 66 3.6 25
M 20 3D-2129 19 19 53 72 3.3 25
95 M 8 3D-2015 12 12 48 60 4.2 25
M 10 3D-2018 12 12 48 60 4.2 50
M 12 3D-2019 13 13 49 62 4.2 50
M 14 3D-2174 14.5 14.5 51 65.5 4.2 25
M 16 3D-2175 16 16 54 70.2 3.9 50
M 20 3D-2130 22 22 60 82 3 25
120 M 8 3D-2020 14 14 51 65 4.3 25
M 10 3D-2021 14 14 51 65 4.3 50
M 12 3D-2022 14 14 51 65 4.3 50
M 14 3D-2023 15 15 52 67 4.3 25
M 16 3D-2035 16 16 54 70 4 50
M 20 3D-2176 22 22 63 85 3.326 25
150 M 8 3D-2036 14 14 56 70 4.2 10
M 10 3D-2037 14 14 56 70 4.2 10
M 12 3D-2038 15 15 57 72 4.2 25
M 14 3D-2039 15 15 57 72 4.2 10
M 16 3D-2040 16 16 58 74 4.2 10
M 20 3D-2177 22 22 66 88 3.6 10
185 M 10 3D-2042 18 18 65 83 4.8 10
M 12 3D-2043 18 18 65 83 4.8 10
M 14 3D-2044 18 18 65 83 4.8 10
M 16 3D-2045 18 18 65 83 4.8 25
M 20 3D-2046 22 22 69 91 4.3 10
240 M 10 3D-2047 19 21.5 72 93.5 5 10
M 12 3D-2048 19 21.5 72 93.5 5 10
M 14 3D-2049 19 21.5 72 93.5 5 10
M 16 3D-2050 19 21.5 72 93.5 5 25
M 20 3D-2051 19 21.5 72 93.5 5 10
300 M 12 3D-2052 24 24 87 111 5.8 5
M 14 3D-2053 24 24 87 111 5.8 5
M 16 3D-2122 24 24 87 111 5.8 5
M 20 3D-2131 24 24 87 111 5.8 5
400 M 12 3D-2123 24 24 90 114 6.8 5
M 14 3D-2124 24 24 90 114 6.8 5
M 16 3D-2125 24 24 90 114 6.8 5
M 20 3D-2109 24 24 90 114 6.8 5
