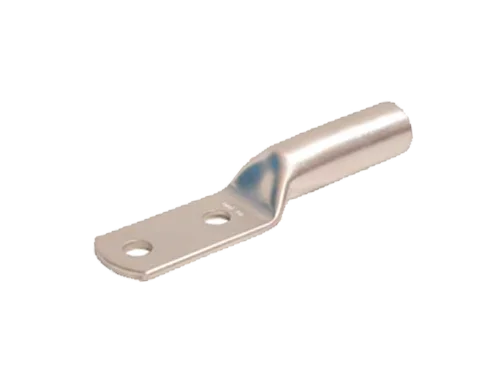

Cable Tubular Lugs

tabular cable lugs

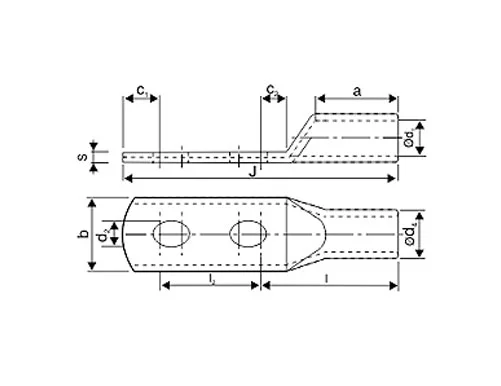

cable lug daigram

Dimensions as per DIN 48 201

Tube dimensions DIN 46 235

Material: Electrolytic copper

Surface: Tin Plated

TYPE: 2 long holes in the palm

Copper finish on request

Technique Data
Conductor Bolt Ø A B C1 C2 D1 D2 I I2 J PKG
70 2 X M12 28 24 13 13 11.5 13 55 50-62 130 25
95 2 X M12 35 28 13 13 13.5 13 65 50-62 140 20
120 2 X M12 35 32 16 17 15.5 13 70 50-62 148 25
150 2 X M12 35 34 16 17 17 13 78 50-62 156 25
185 2 X M12 40 37 16 17 19 13 82 50-62 160 20
240 2 X M12 40 42 16 17 21.5 13 92 50-62 170 10
