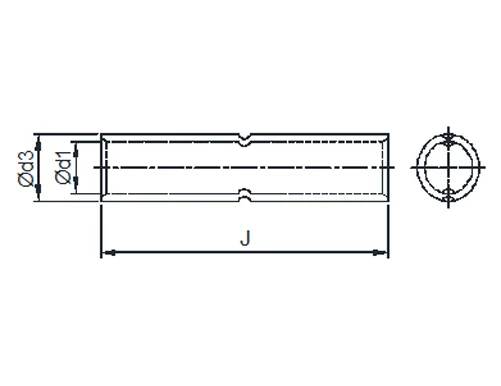

All dimensions are in mm, otherwise specified.
As per customer requirement we can provide tin finish. 'T' will be added with below Cat No. for tin finish.
| UL 486A-486B and CSA C22.2 NO.65-13-Wire Connectors | ||||
|---|---|---|---|---|
| Conductor | CAT No. | Material | ID Ød1 | Tot Lt. J |
| #8 AWG | 3D LBS 8 | Cu | 4.5 | 57.1 |
| #6 AWG | 3D LBS 6 | Cu | 5.5 | 60.4 |
| #4-#3 AWG STR, #2 AWG SOL |
3D LBS 4 | Cu | 7.1 | 60.4 |
| #2 AWG | 3D LBS 2 | Cu | 7.8 | 66.5 |
| #1 AWG | 3D LBS 1 | Cu | 9.1 | 72.8 |
| 1/0 AWG | 3D LBS 1/0 | Cu | 9.9 | 72.8 |
| 2/0 AWG | 3D LBS 2/0 | Cu | 11.4 | 79.5 |
| 3/0 AWG | 3D LBS 3/0 | Cu | 12.9 | 79.2 |
| 4/0 AWG | 3D LBS 4/0 | Cu | 14.4 | 85.5 |
| 250 kcmil | 3D LBS 250 | Cu | 16.0 | 85.8 |
| 300 kcmil | 3D LBS 300 | Cu | 16.5 | 104.6 |
| 350 kcmil | 3D LBS 350 | Cu | 17.7 | 104.6 |
| 400 kcmil | 3D LBS 400 | Cu | 19.3 | 110.9 |
| 500 kcmil | 3D LBS 500 | Cu | 21.3 | 117.3 |
| 600 kcmil | 3D LBS 600 | Cu | 23.3 | 139.7 |
| 750 kcmil | 3D LBS 750 | Cu | 26.1 | 149.0 |
