Heavy Duty Lugs Extra Long Type Tubular Lugs

Extra long type barrel, without inspection hole for copper conductors.

Material: ETP-Copper

Surface: Tin Plated

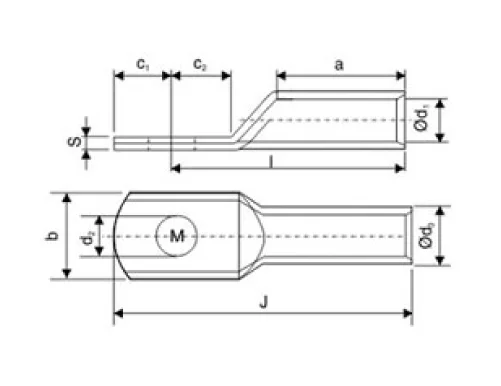

Technique Data
Conductor Bolt Ø CAT No. C1 C2 I J S PKG
25 M 8 3D-2340 8 12 33 41 2 400
M 10 3D-2340A 8 12 33 41 2 400
35 M 8 3D-2341 9 14 39 48 2.6 300
M 10 3D-2341A 9 14 39 48 2.6 300
50 M 8 3D-2342 10 16 49 59 3 200
M 10 3D-2342A 10 16 49 59 3 200
M 12 3D-2342B 10 16 49 59 3 200
70 M 10 3D-2343 12 19 54 66 3.5 100
M 12 3D-2343A 12 19 54 66 3.5 100
95 M 12 3D-2344 12 20 62 74 4.2 80
M 16 3D-2344A 12 20 62 74 4.2 80
120 M 12 3D-2345 14 23 68 82 4.8 50
M 16 3D-2345A 14 23 68 82 4.8 50
150 M 12 3D-2346 14 24 72 86 5.2 40
M 16 3D-2346A 14 24 72 86 5.2 40
185 M 12 3D-2347 17 23 78 95 6 25
M 16 3D-2347A 17 23 78 95 6 25
M 20 3D-2347B 17 23 78 95 6 25
240 M 16 3D-2348 20 30 92 112 6 20
M 20 3D-2348A 20 30 92 112 6 20
300 M 16 3D-2998 19 22 97 119 7.5 60
M 20 3D-2999 19 22 100 122 7.5 60
400 M 16 3D-3000 25 25 115 140 11 10
M 20 3D-3000A 25 25 115 140 11 10
