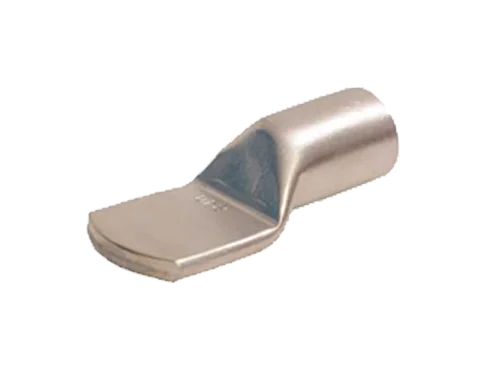

Standard Type Without Stud Hole.
With inspection hole as per DIN 46 235
Material: Electrolytic copper
Surface: Tin Plated

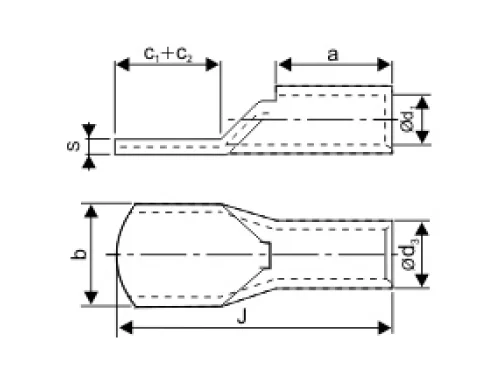

| Technique Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Bolt Ø | CAT No. | C1 | C2 | I | J | S | PKG | |
| 400 | BLK | 3D-2759 | 26 | 26 | 88 | 114 | 8 | 5 | |
| 500 | BLK | 3D-2768 | 28 | 28 | 96 | 124 | 9 | 4 | |
| 630 | BLK | 3D-2776 | 33 | 33 | 111 | 144 | 10 | 3 | |
| BLK | 3D-2777 | 37 | 38 | 133 | 170 | 11.6 | 10 | ||
| 1000 | BLK | 3D-2778 | 45 | 45 | 155 | 200 | 13.2 | 6 | |
