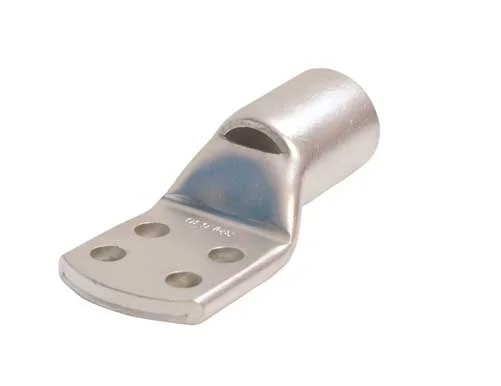

Standard Type
With 4 stud holes and inspection hole
Material: Electrolytic copper
Surface:Tin Plated

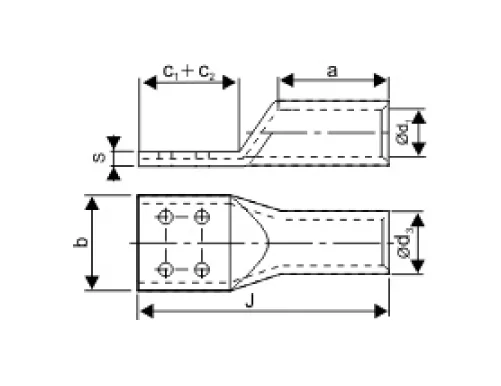

| Technique Data | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Conductor | Bolt Ø | CAT No. | C1 | C2 | I | J | S | PKG | |
| 300 | M- 8X4 | 3D-2766 | 16.3 | 16.3 | 98.7 | 115 | 6.5 | 5 | |
| 400 | M- 8X4 | 3D-2767 | 16.3 | 16.3 | 103.7 | 120 | 8 | 10 | |
| 630 | M- 8X4 | 3D-2775 | 20.3 | 20.3 | 123.7 | 144 | 8 | 10 | |
