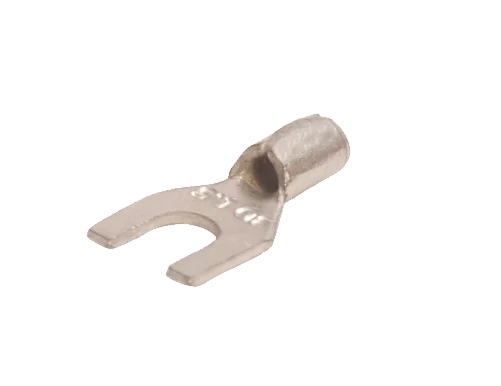

Fork Type Sheet Metal Lugs

Standard Type, Brazed Seam (Fork Type)

Material: ETP-Copper

Surface: Tin Plated

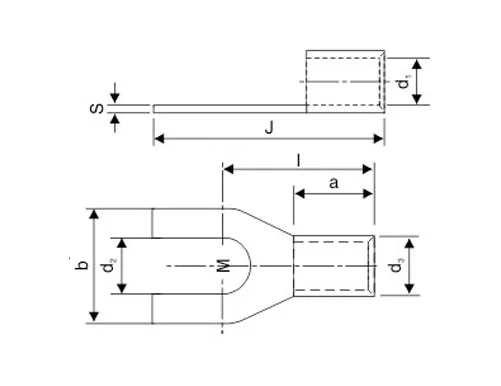

Technique Data
Conductor Bolt Ø CAT No. I J S PKG
0.5 to 1.5 mm2 M 2 3D-1709 10.6 13 0.8 -
M 3 3D-1923 11 14 0.8 -
M 3.5 3D-1699 11.1 14.5 0.8 -
M 3.5 3D-1700 11 14 0.8 -
M 4 3D-1701 12 16 0.8 -
M 4 3D-1704 11 15 0.8 100
M 4 3D-1875 12 16 0.8 -
M 5 3D-1702 13 18 0.8 -
M 5 3D-1698 17 21 0.8 -
2.5mm2 M 3 3D-1902 10 14 0.8 -
M 3 3D-1889 11 14 0.8 -
M 3.5 3D-1890 11 14 0.8 100
M 3.5 3D-1884 11.8 15 0.8 -
M 4 3D-1898 11.8 15 0.8 -
M 4 3D-1891 12 16 0.8 -
M 5 3D-1892 14 19 0.8 -
M 5 3D-1903 15.7 21 1 -
M 6 3D-1896 14 19 0.8 -
4 mm2 to M 3 3D-1906 11.5 15 1 100
6 mm2 M 3.5 3D-1907 11 15 1 -
M 4 3D-1733 13 17 1 -
M 4 3D-1914 14 18 1 -
M 5 3D-1734 13 17 1 -
M 5 3D-1916 15 20 1 -
M 6 3D-1915 16 21.5 1 -
10 mm2 M 6 3D-1917 19 27 1.2 100
M 8 3D-1918 19 27 1.2 -
16 mm2 M 5 3D-1922 20 26 1.2 50
- - 3D-1709 10.6 13 0.8 -
- 3D-1923 11 14 0.8 -
- 3D-1699 11.1 14.5 0.8 -
- 3D-1700 11 14 0.8 -
- 3D-1701 12 16 0.8 -
- 3D-1704 11 15 0.8 100
- 3D-1875 12 16 0.8 -
- 3D-1702 13 18 0.8 -
- 3D-1902 10 14 0.8 -
- 3D-1889 11 14 0.8 -
- 3D-1890 11 14 0.8 100
- 3D-1884 11.8 15 0.8 -
- 3D-1898 11.8 15 0.8 -
- 3D-1891 12 16 0.8 -
- 3D-1892 14 19 0.8 -
- 3D-1903 15.7 21 1 -
- 3D-1896 14 19 0.8 -
- 3D-1906 11.5 15 1 100
- 3D-1907 11 15 1 -
- 3D-1733 13 17 1 -
- 3D-1914 14 18 1 -
- 3D-1734 13 17 1 -
- 3D-1916 15 20 1 -
- 3D-1915 16 21.5 1 -
- 3D-1917 19 27 1.2 100
- 3D-1918 19 27 1.2 -
- 3D-1922 20 26 1.2 50
