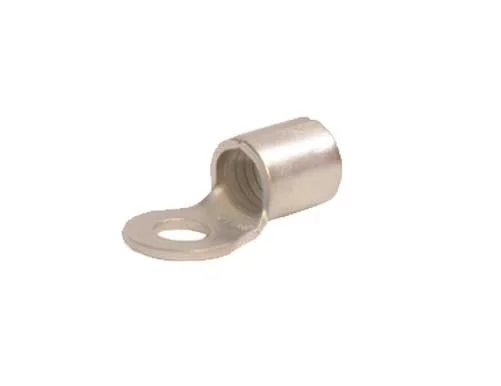

Ring Type Lug Sheet Metal Lugs

Standard Type, Brazed Seam

Material: ETP-Copper

Surface: Tin Plated

Technique Data

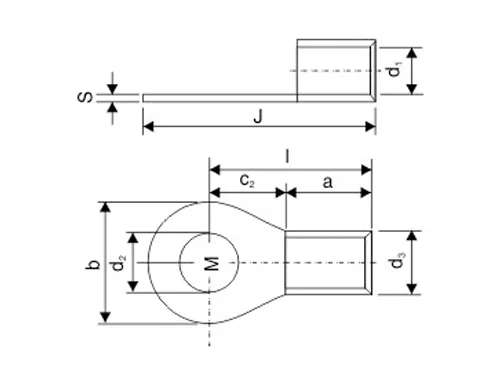

Conductor Bolt Ø CAT No. C2 I J S PKG
0.5 to 1.5 mm2 m 2 3d-1263 6 11 14 0.8 200
m 2.5 3d-1242 6 11 14 0.8 -
m 3 3d-1247 6 11 14 0.8 -
m 3 3d-1260 4.6 9.6 13 0.8 -
m 3 3d-1265 7 12 16 0.8 -
m 3.5 3d-1269 6 11 14 0.8 -
m 3.5 3d-1257 4.6 9.6 13 0.8 -
m 4 3d-1257 6 11 14 0.8 -
m 4 3d-1258 4.6 9.6 13 0.8 -
m 4 3d-1246 7 12 16 0.8 -
m 4 3d-1261 6 11 14.5 0.8 -
m 4 3d-1266 8 13 18 0.8 -
m 5 3d-1262 7 12 16 0.8 -
m 5 3d-1267 8 13 18 0.8 -
m 6 3d-1224 8 13 18 0.8 -
m 6 3d-1268 7 12 18 0.8 -
M8 3D-1252 12 17 23 0.8 -
2.5 mm2 m 3 3d-1308 4.5 9.5 12.7 0.8 200
m 3.5 3d-1292 4.5 9.5 12.7 0.8 -
m 3.5 3d-1309 7 12 16 0.8 -
m 4 3d-1296 7 12 16 0.8 -
m 5 3d-1304 7 12 16 0.8 -
m 5 3d-1310 8 13 18 0.8 -
m 5 3d-1313 11 16 22 0.8 -
m 6 3d-1342 8 13 18 0.8 -
m 6 3d-1305 11 16 22 0.8 -
m 6 3d-1314 12 17 25 0.8 -
m 8 3d-1307 11 16 22 0.8 -
m 8 3d-1311 12 17 25 0.8 -
m 10 3d-1287 12 17 25 0.8 -
m 10 3d-1524 15 20 29 0.8 -
m 12 3d-1438 15 20 29 0.8 -
4mm2 to 6mm2 m 4 3d-1432 7 13 17 1 100
m 4 3d-1435 8 14 19 1 -
m 5 3d-1431 7 13 17 1 -
m 5 3d-1408 8 14 19 1 -
m 5 3d-1433 12.8 18.8 22.8 1 -
m 5 3d-1405 8 14 20 1 -
m 5 3d-1404 10 16 22 1 -
m 6 3d-1415 8 14 20 1 -
m 6 3d-1417 10 16 22 1 -
m 6 3d-1406 12.5 18.5 25.5 1 -
m 8 3d-1416 8 14 20 1 -
m 8 3d-1421 12.5 18.5 25.5 1 -
m 8 3d-1407 16 22 30 1 -
m 8 3d-1429 15 21 30 1 -
m 9 3d-1410 12.5 18.5 25.5 1 -
m 10 3d-1427 16 22 30 1 -
m 10 3d-1428 15 21 30 1 -
m 12 3d-1430 15 21 30 1 -
10mm2 m 4 3d-1463 9 17 22 1 100
m 4 3d-1464 7 15 20 1 -
m 5 3d-1459 9 17 22 1 -
m 5 3d-1460 7 15 20 1 -
m 6 3d-1465 9 17 23 1 -
m 8 3d-1466 11 19 27 1 -
m 8 3d-1467 13 21 30 1 -
m 10 3d-1461 13 21 30 1 -
m 10 3d-1468 15 23 34 1 -
m 12 3d-1462 15 23 34 1 -
16mm2 m 5 3d-1516 9 19 24 1.2 50
m 5 3d-1517 10 20 26 1.2 -
m 6 3d-1511 10 20 26 1.2 -
m 6 3d-1518 12 22 30 1.2 -
m 8 3d-1512 12 22 30 1.2 -
m 8 3d-1519 14 24 33 1.2 -
m 9 3d-1513 12 22 30 1.2 -
m 10 3d-1514 14 24 33 1.2 -
m 10 3d-1520 14 24 35 1.2 -
m 12 3d-1515 14 24 35 1.2 -
25mm2 m 6 3d-1561 14 25 31 1.8 50
m 6 3d-1557 11 22 30 1.8 -
m 6 3d-1558 14 25 33 1.8 -
m 8 3d-1556 14 25 31 1.8 -
m 8 3d-1552 11 22 30 1.8 -
m 8 3d-1554 14 25 33 1.8 -
m 10 3d-1553 11 22 30 1.8 -
m 10 3d-1559 14 25 34 1.8 -
m 10 3d-1560 20 31 42 1.8 -
m 12 3d-1555 20 31 42 1.8 -
35mm2 m 6 3d-1584 11 23 31 1.8 50
m 8 3d-1581 11 23 31 1.8 -
m 8 3d-1585 15 27 36 1.8 -
m 10 3d-1582 15 27 36 1.8 -
m 10 3d-1586 19 31 42 1.8 -
m 12 3d-1583 19 31 42 1.8 -
50mm2 m 8 3d-1609 18 34 43 1.8 50
m 10 3d-1607 18 34 43 1.8 -
m 10 3d-1610 16 32 43 1.8 -
m 10 3d-16011 20 36 48 1.8 -
m 12 3d-1608 20 36 48 1.8 -
m 16 3d-1612 22 38 54 1.8 -
70mm2 m 10 3d-1637 18 36 47 2 25
m 12 3d-1636 18 36 47 2 -
m 12 3d-1638 18 36 48 2 -
m 16 3d-1639 22 40 54 2 -
95mm2 m 10 3d-1651 15 35 46 2.3 25
m 10 3d-1652 20 38 50 2.3 -
m 12 3d-1650 18 38 50 2.3 -
m 16 3d-1653 24 44 58 2.3 -
120mm2 m 12 3d-1658 17 39 52 2.6 25
m 16 3d-1659 26 48 64 2.6 -
m 20 3d-1660 30 52 72 2.6 -
150mm2 m 12 3d-1668 25 49 66 3.6 25
m 16 3d-1666 25 49 66 3.6 -
m 16 3d-1669 30 54 74 3.6 -
m 20 3d-1667 30 54 74 3.6 -
